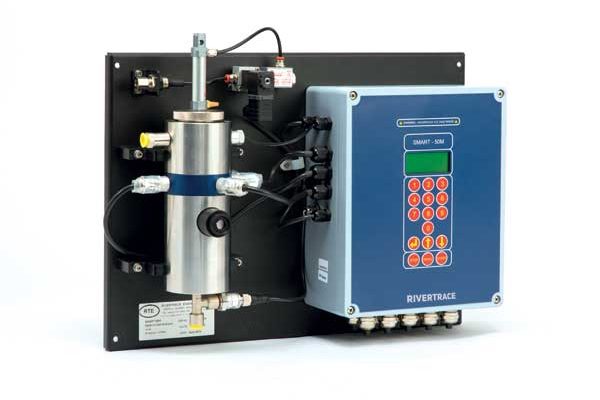

The SMART 50M is a versatile oil in water monitor suitable for high temperature and pressure in both marine and industrial applications.
Overwiew
The SMART 50M is a versatile and sophisticated oil-in-water detector. The monitor is designed for high temperature and high-pressure sample measurements in marine and industrial applications, across multiple ranges of oil concentration.
The monitor has two versions available to suit different oil ranges – low and medium. Combined with proprietary measuring cell, autoclean capability and auto-zeroing functionality, this oil-in water detector has minimal maintenance requirements, producing highly accurate measurements consistently, as the measuring cell is kept free from fouling.
The oil-in-water detector uses a nephelometry based detection technique and sophisticated algorithms to detect oil content in the sample stream.
An internal data recorder will log the following data – oil concentration, sample pressure, sample temperature, fault status alarm and run status.
The Smart 50M can provide the Oil Concentration value to a DCS or PLC using a 4-20mA output.
As standard the following data is available:
- Oil Concentration
- Sample Pressure
- Sample Temperature
- Fault Status
- Alarm and Run states
Applications
- Hydrocarbon Leak Detection
- Lube Oil Cooler Monitoring
- Boiler Feed Protection
- Heat Exchanger Leak Detection
- Industrial Wastewater/Groundwater discharge
Technical Specifications
| Ranges |
|
| Accuracy |
|
| Alarm 1 Operating Point |
|
| Alarm 2 Operating Point |
|
| Alarm 1 Operating Delay | 1 – 15 seconds |
| Alarm 2 Operating Delay | 1 – 600 seconds |
| Alarm contact rating | 8 AMP @230VAC |
| Output signal | 4-20 mA |
| Ambient temperature | 1-60 °C / 34 – 122 F |
| Humidity | Max 98% non condensing |
| Sample temperature | 1 – 95 °C / 34-203 F |
| Sample Flow | user adjustable |
| Sample Pressure | user adjustable |
| Clean Water requirements | 0 – 5 seconds user adjustable |
| Weight | 0 – 600 seconds user adjustable |
| Size | 500 x 360 x 150mm / 19.7” x 14.2” x 5.9” |
| Supply voltage | 115 – 230 VAC |
| Power consumption | 15 VA |
| Degree of Protection | IP56 |
| Approvals | Tested to EN61010 EN61326 (CE), c UL us. |
