Ultrasonic Tank Liquid Level Indicator

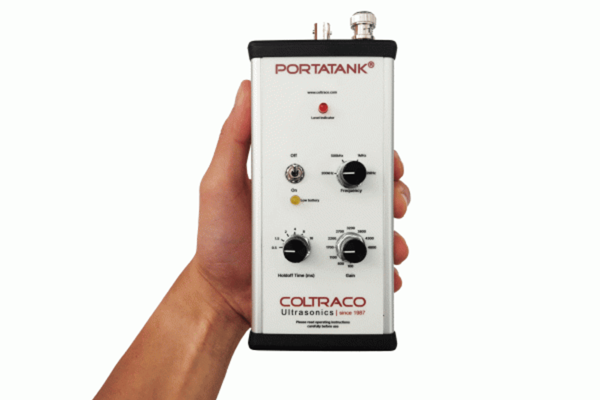

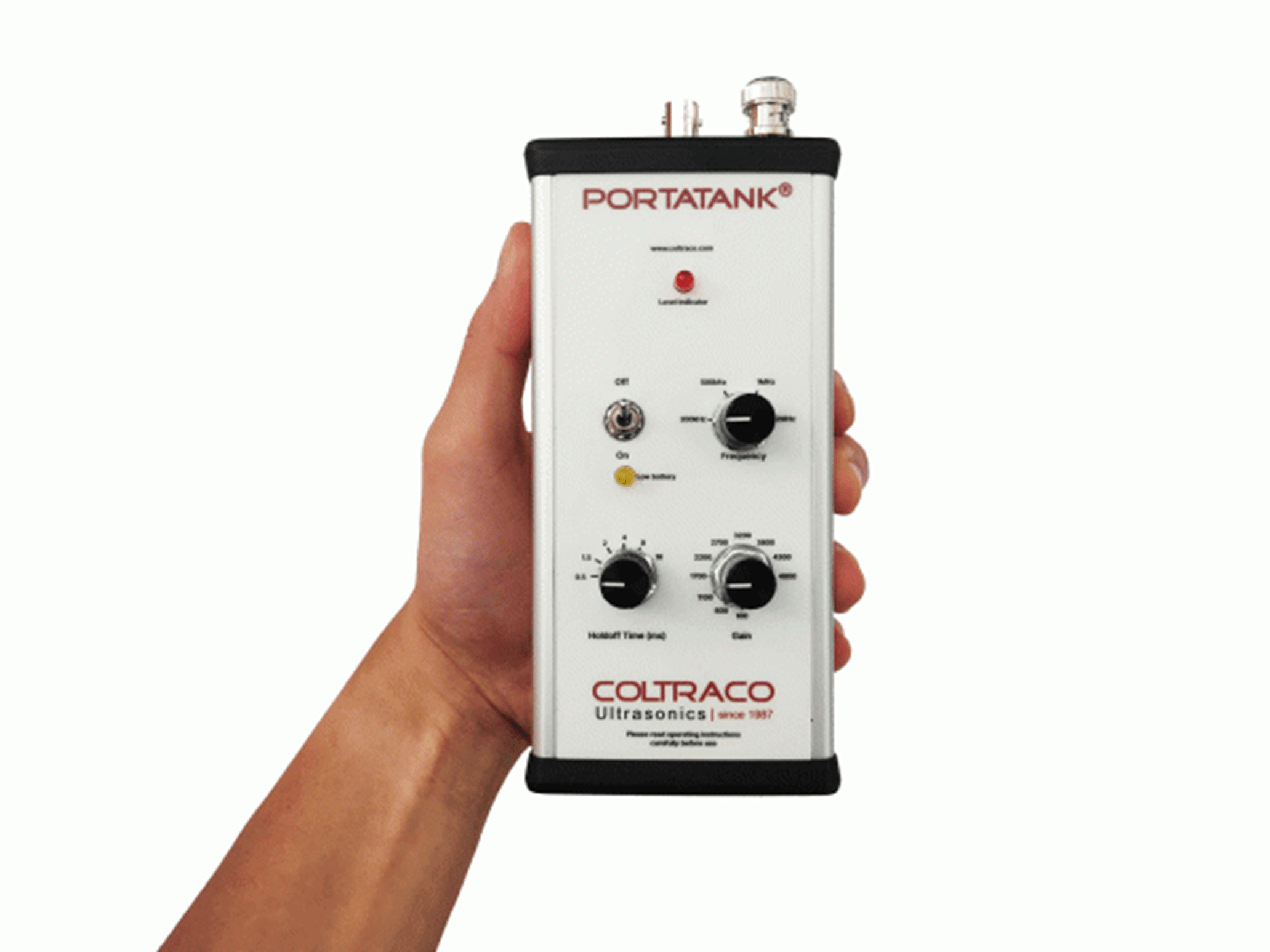

The Portatank® is a versatile, handheld, portable ultrasonic liquid level indicator for fast and reliable measurements. Powered by a battery, it provides a non-invasive way to measure the liquid level within tanks, making it ideal for industrial and commercial applications.

The device can accurately measure liquid levels in vessels ranging from 0.5 meters to 15 meters in diameter. Whether working with metal, plastic, or glass tanks, the Portatank® ensures consistent results across various materials.

P/N: 3141184-TANK
CAGE Code: KD983 – COLTRACO LIMITED

Do You Need A Portable Handheld Liquid Level Indicator?

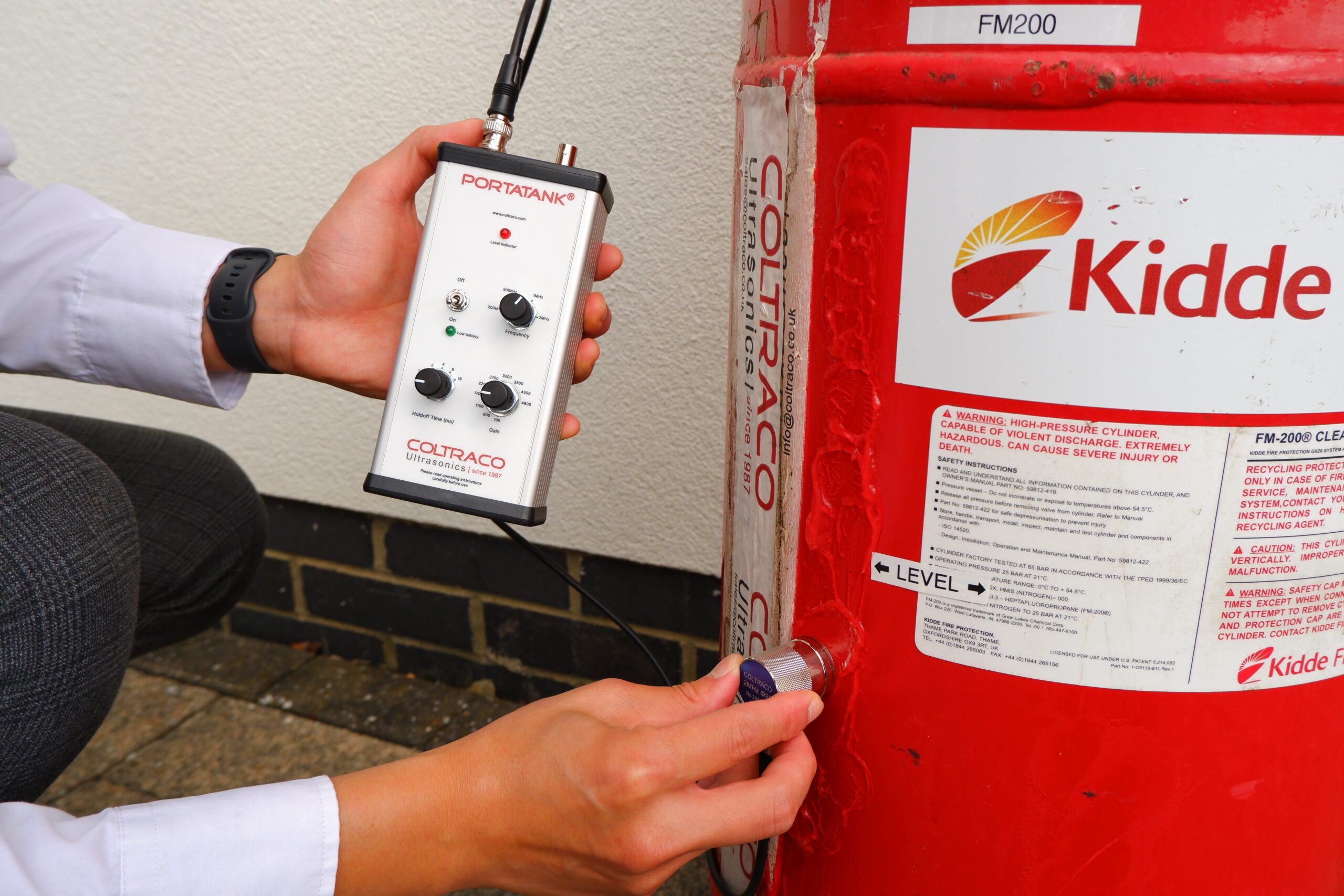

If your operations involve managing liquid tanks across various industries, from fire suppression agent bulk storage to oil, fuel, and water tanks, the Portatank® is the ideal solution. This ultrasonic handheld liquid level indicator offers portability, accuracy, and flexibility.

Utilising non-invasive ultrasound technology, the Portatank® quickly measures liquid levels in vessels up to 15 meters in diameter, making it a safe and efficient tool for industrial and commercial applications. The Portatank® is designed to handle a variety of liquids, including fuels, oils, coolants, and even liquid foodstuffs, ensuring precision without compromising tank integrity.

If you’re looking for a reliable, easy-to-use device that saves time and enhances safety, the Portatank® provides the perfect solution for your liquid level measurement needs.

Technical Specifications

Dimensions 168x79x44 mm (L x W x D)
Unit Weight 520g
Verifiable Agents Water, fuels, oils, and most clean liquids
Wall Material Single-skinned only, works on most metals, plastics, and glass, etc.
Power Supply 4 x 1.5V AA batteries
Battery Life 6 Hours Continuous Use
Sensor Type 25mm diameter 500KHz sensor (2MHz option available)
Sensor Connectivity 1m BNC Coaxial Cable
Sensor Frequency Standard Sensor: 500 kHz
Other Options: 200KHz, 1 MHz, 2 MHz
Operating Temperature -20°C to +70°C (-4°F to 158°F)
Display Visual LED indication
Tank Working Range 0.5 metres – 15+ metres
Accuracy +/- 10mm
Registrations and Approvals UKCA, CE, Coltraco is ISO 9001:2015 and ISO 14001 registered.
Warranty
  • Main unit – 3 Year Warranty
  • Sensor – 1 Year Warranty
  • Technical Support – Lifetime of the unit
