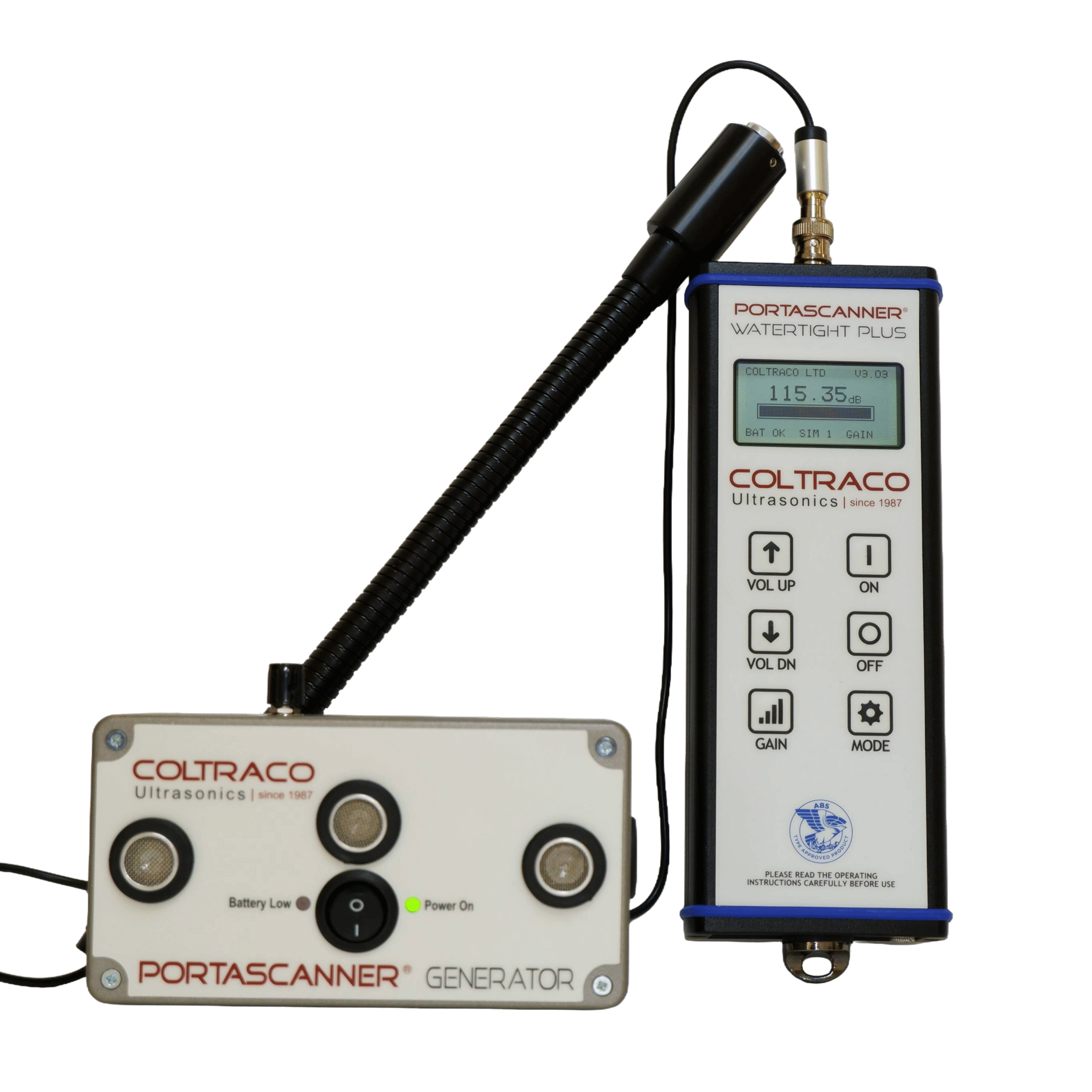

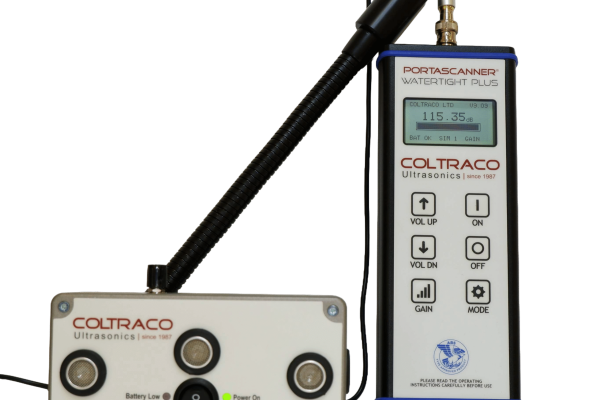

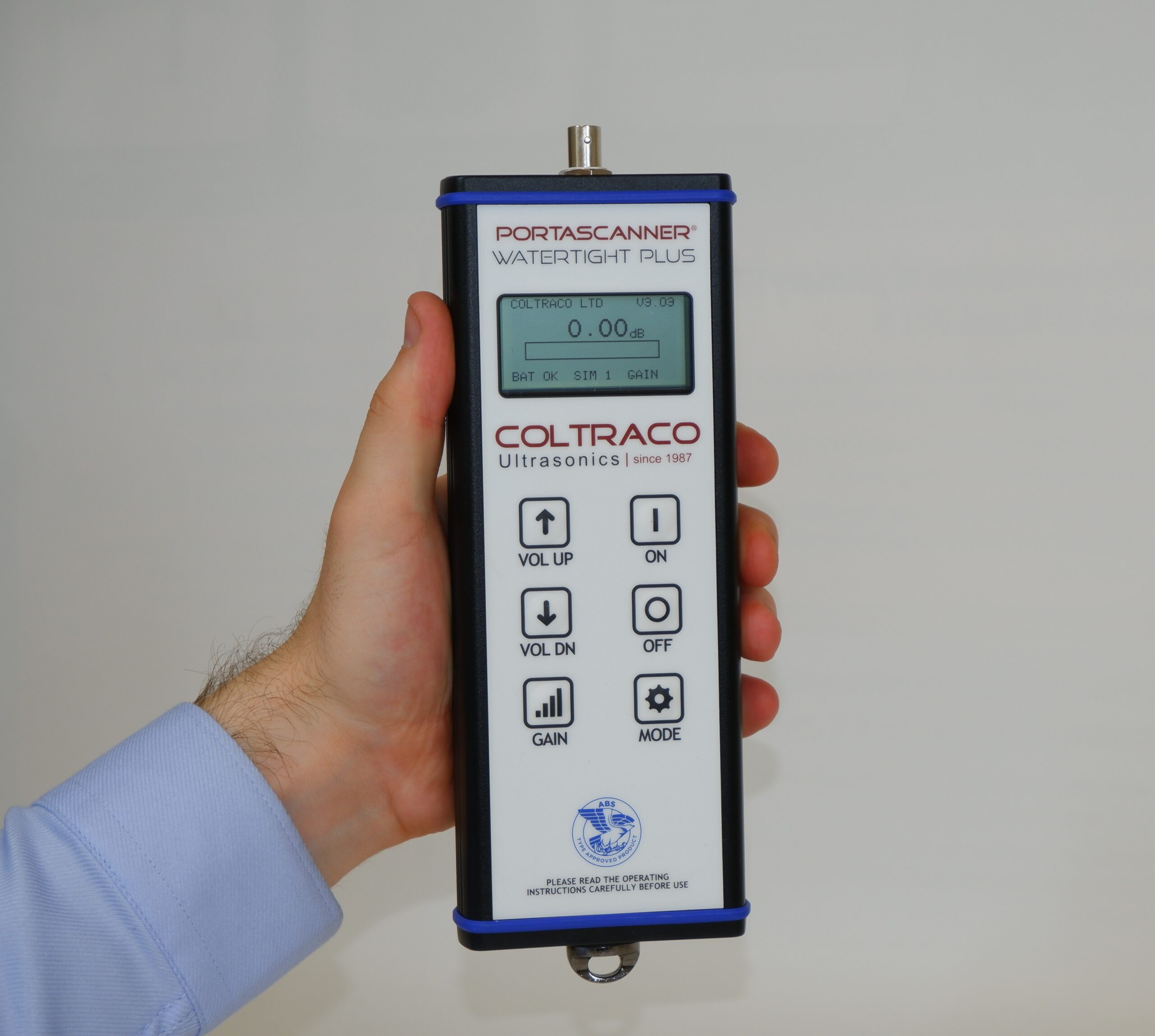

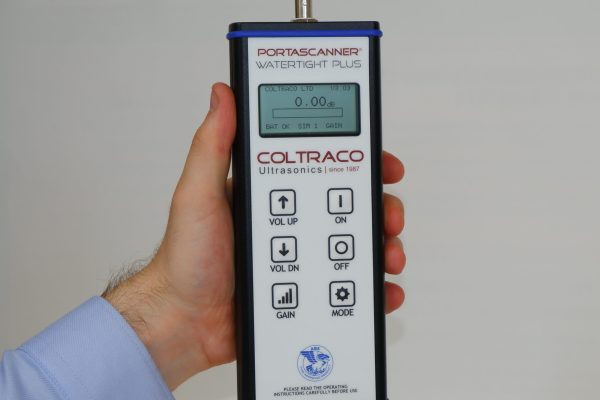

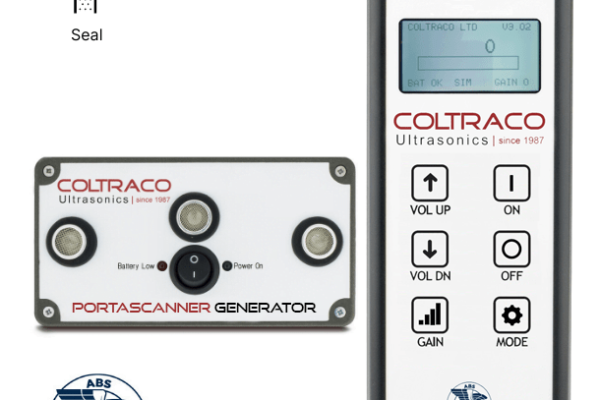

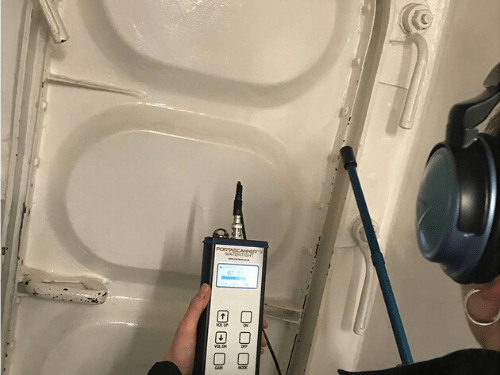

Portascanner® WATERTIGHT PLUS is a handheld watertight integrity tester for inspecting the watertightness and weathertightness of hatch covers, watertight doors and multi cable transit seals in marine environments. It is a portable, handheld solution which can be used by a single operator to test a large number of different hatches and seals in one quick and easy inspection.
P/N: 509004-WTPLUS
NSN: 6625-99-257-8336
IMPA MSG P/N: 652778
CAGE Code: KD983 – COLTRACO LIMITED

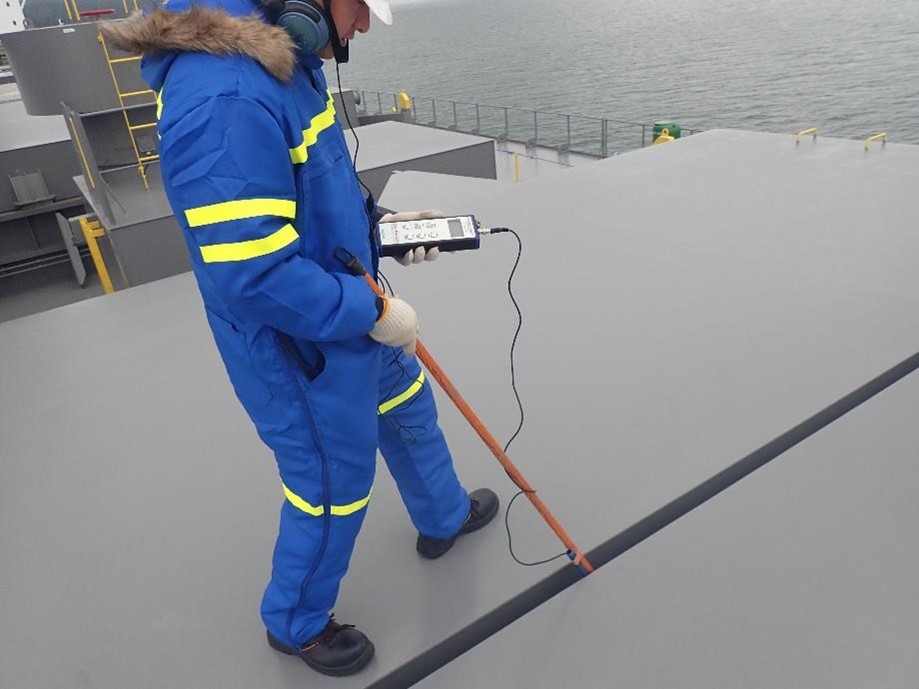

Ultrasonic hatch cover testing is the only recognised method by P&I Clubs around the world in determining weathertightness in hatch covers. Using the Portascanner® WATERTIGHT PLUS, the crew can locate leaks and report them in decibels (dB) and percentage Open Hatch Value (%OHV), which is a Classification Society requirement.
The Hatch Cover is considered weathertight when the %OHV is less than 10%, and the Portascanner® WATERTIGHT PLUS calculates this figure automatically to enable quick and seamless testing by the crew. This calculation requirement complies with DNVGL-CP-0484 and IACS URZ17.
| Dimensions | Main Unit: 229x85x35 mm (L x W x D) Generator: 147x89x54 mm (L x W x D) Sensor Wand: 230mm (L) x 35mm (Diameter) |
| Unit Weight | Main Unit: 400g (with batteries) Generator: 400g (with batteries) |
| Power Supply | Main Unit: 1x PP3 9V Generator: 2x PP3 9V |
| Battery Life | 10 Hours Continuous Use |
| Sensor Type | 35mm Flexible Sensor Wand |
| Sensor Connectivity | 1.8m BNC Coaxial Cable |
| Generator Frequency | 40KHz |
| Operating Temperature | -20°C to +70°C (-4°F to +158°F) |
| Display | 55 x 28 mm Backlit LCD Display |
| Minimum Leak Detection | 0.06 mm ±0.02mm Leak Diameter |
| Classifications & Approvals | RINA Classification Society Accepted, ABS Type Approved, NSN: 6625-99-257-8336 |
| Registrations | UKCA, CE, Coltraco is ISO 9001 and ISO 14001 Compliant |
| Warranty |
|
