Precision Liquid Level Indication in Marine Environments

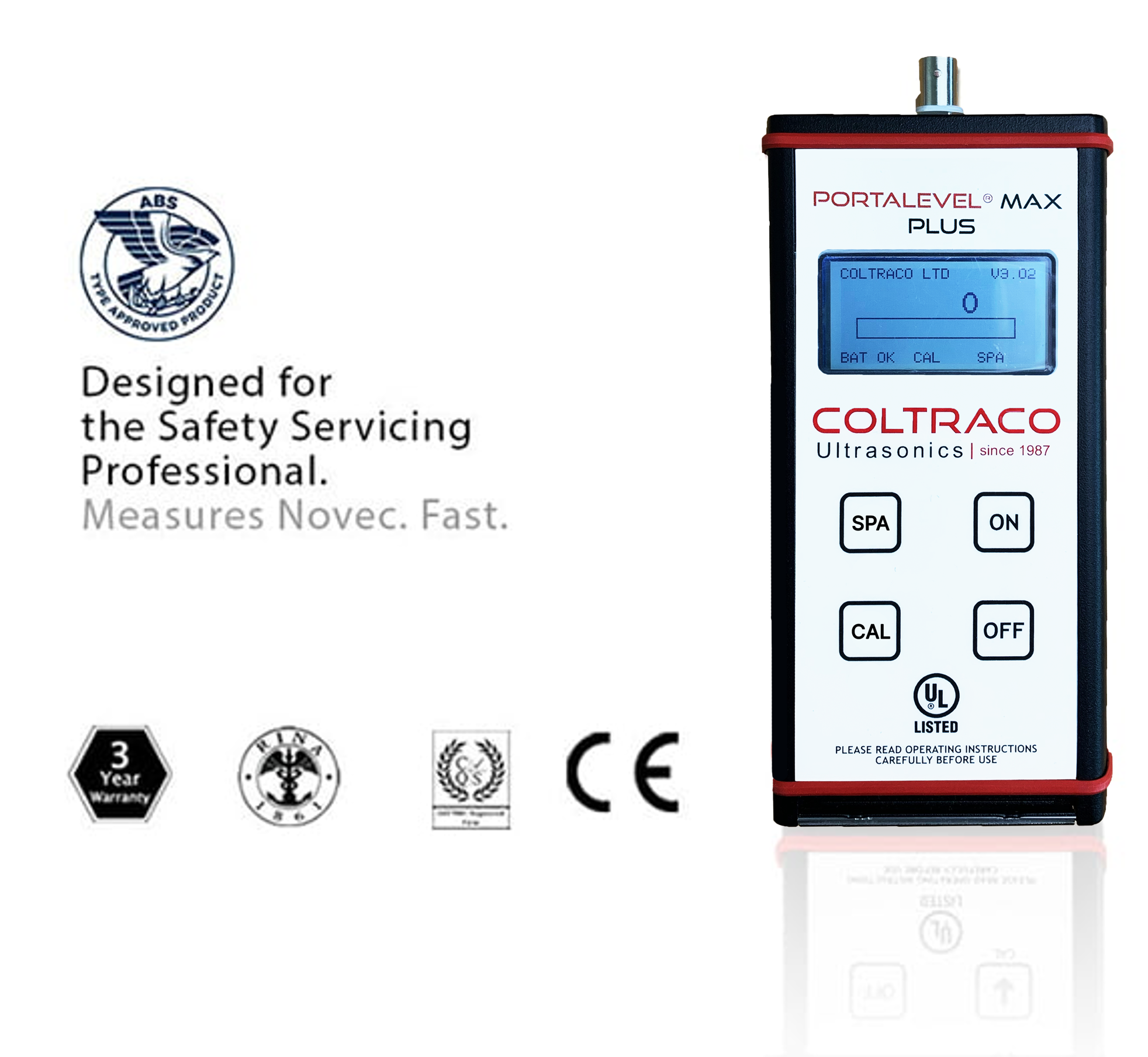

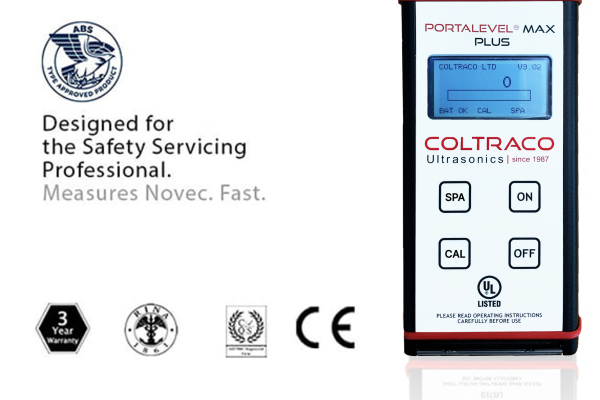

Portalevel® MAX MARINE PLUS is a highly capable, handheld liquid level indicator with ABS Type Approval for marine applications in level monitoring. Portalevel® MAX MARINE PLUS is fast, accurate, and reliable; with a survivable construction and cutting-edge ultrasonic capabilities, it allows an operator to non-invasively monitor the liquid level of almost any CO2, Halon, or Clean Agent fire suppression system at sea.

P/N: 2290334-COMXPSM
NSN: 6680-99-192-2735
IMPA MSG P/N: 652776
CAGE Code: KD983 – COLTRACO LIMITED

The Benefits of Portalevel® MAX MARINE PLUS

Portalevel® MAX MARINE PLUS uses our latest developments in ultrasonic technology to provide liquid level indication with both extreme precision and ease-of use. Portalevel® MAX MARINE PLUS is:

  • Highly accurate to ±1.5 mm
  • Handheld and portable, requiring just a single operator to take measurements
  • Adaptable to application across different size cylinders and agents with 3 calibration modes and 4 power settings
  • Easily operated to find the liquid level in less than 30 seconds

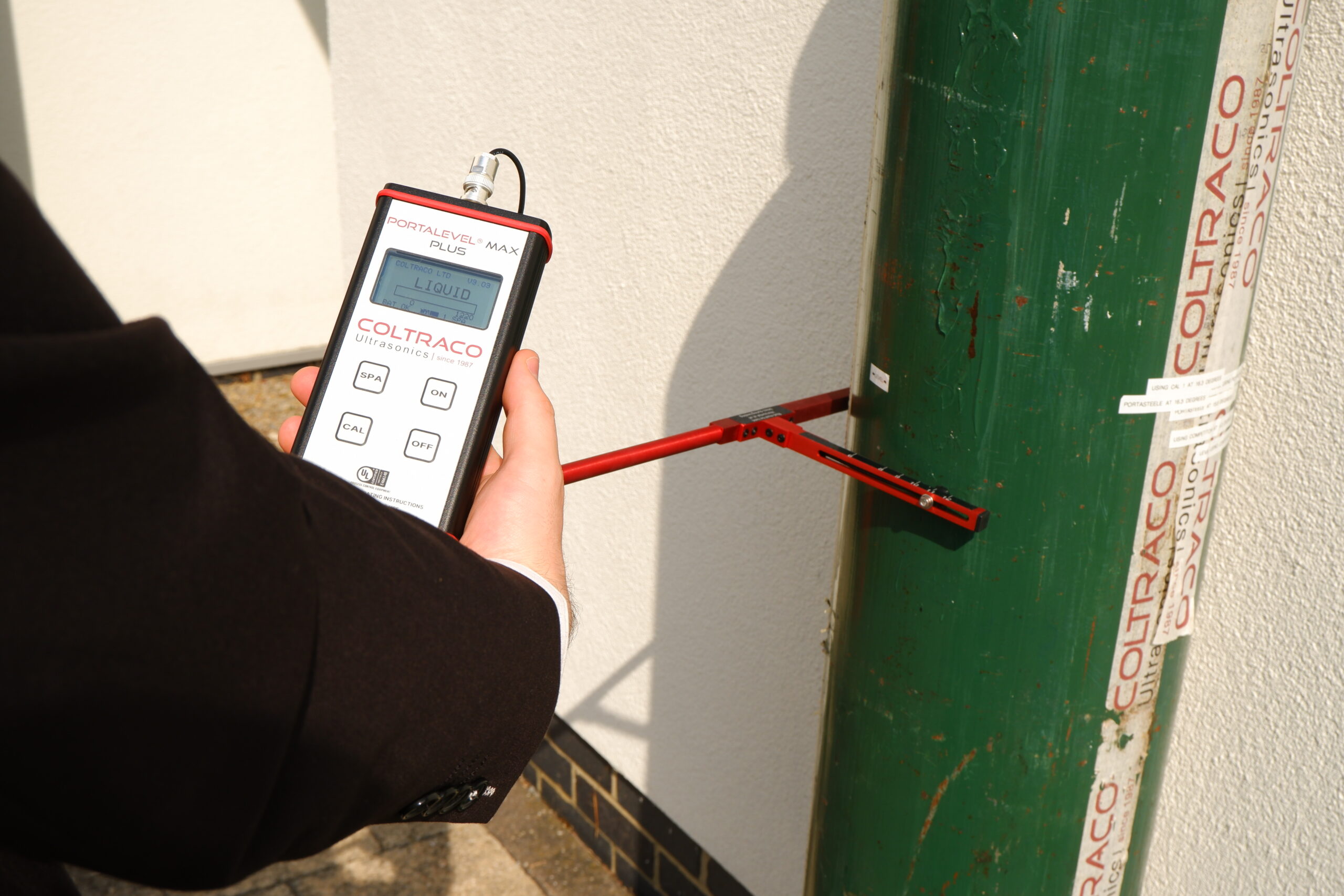

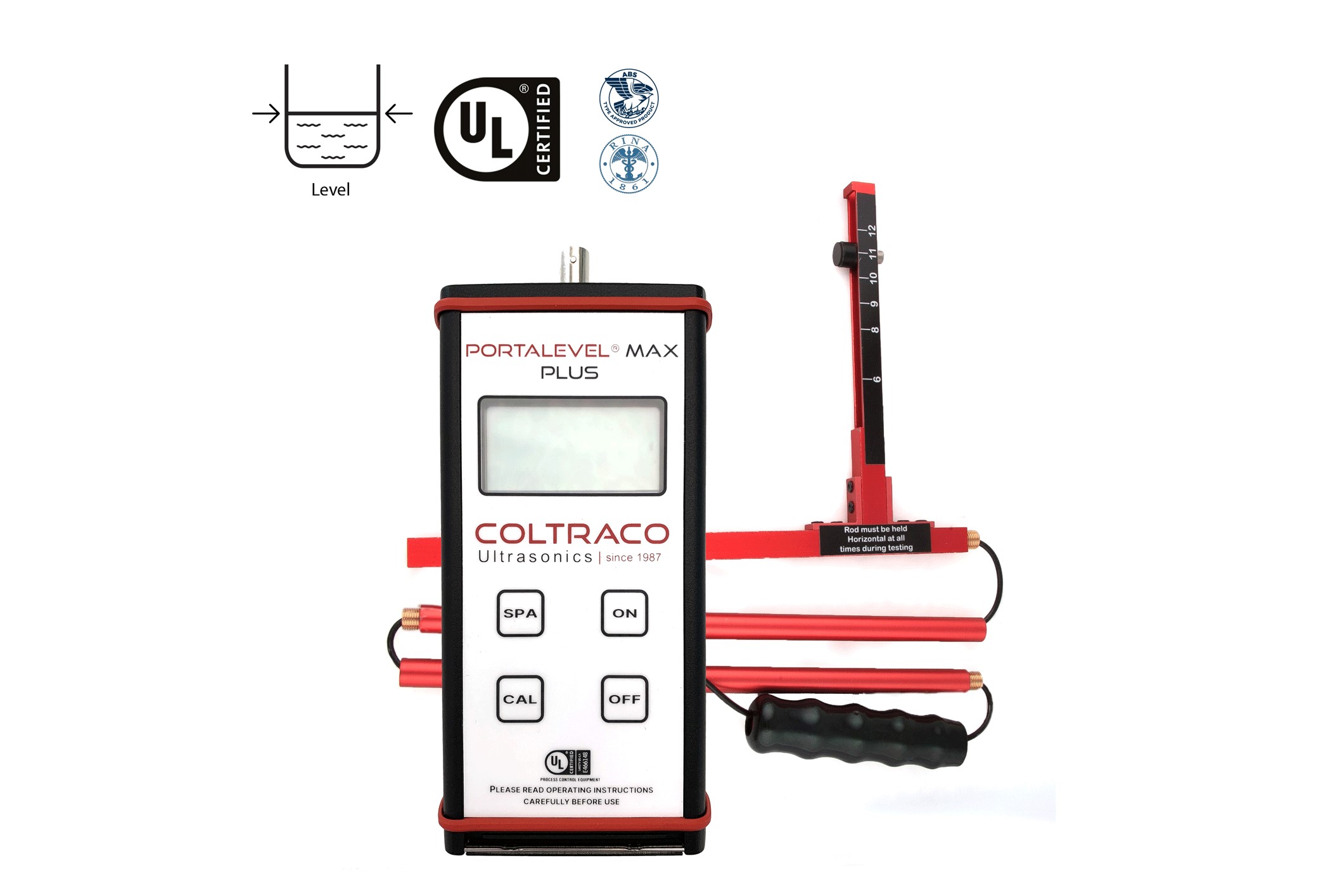

  • Equipped with an extension rod for measuring banked cylinders
  • A non-invasive measurement solution requiring no downtime for the fire suppression system
  • Compatible with the Portasteele® CALCULATOR to calculate agent weight and ensure regulatory compliance
  • Robust and rugged for operation in the harshest of marine environments

Technical Specifications

Dimensions 167x82x30 mm (L x W x D)
Unit Weight 300g (with batteries)
Power Supply 1 x PP3 9V battery
Battery Life 10 hours continuous use
Sensor Type Standard Sensor: 14mm Magnetically Mounted
Extension Rod With Sensor: 12mm Sensor, 0.9m Extension Rod
Sensor Connectivity Standard Sensor: 1 m BNC coaxial cable.
Extension Rod With Sensor: 2.5m BNC coaxial cable
Sensor Frequency 1 MHz
Operating Temperature -10 °C to +65 °C (14 °F to 149 °F)
IP Rating IP 65 Enclosure
Display 55 x 28 mm backlit LCD
Accuracy ±1.5 mm (±1/16 inch)
Classifications & Approvals UL Listed, RINA Classification Society Approval, ABS Type Approval
Registrations CE, UKAS, Coltraco is ISO 9001 and ISO 14001 registered
Warranty
  • Main unit – 3 Year Warranty
  • Sensor – 1 Year Warranty
  • Technical Support – Lifetime of the unit
