Portalevel® LITE is COLTRACO LIMITED Ultrasonics’ latest innovation in ultrasonic liquid level measurement, offering high-accuracy performance at an exceptional value. Building on the success of the Portalevel® Original and Portalevel® Mini, it is designed for the non-invasive measurement of fire suppression system contents.
P/N: 2290334-LITE
NSN: 6680-99-275-5292
IMPA MSG P/N: 652776
CAGE Code: KD983 – COLTRACO LIMITED

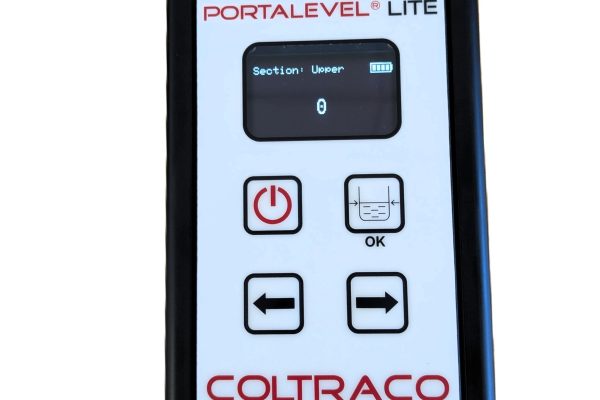

Portalevel® LITE quickly and accurately determines the liquid level in a wide range of liquefied fire suppression agents, including CO2, FM200™, and NOVEC™1230. The device features a high-contrast OLED display that clearly indicates the cylinder contents phase, showing either “GAS” or “LIQUID.”
With over 30 years of experience in developing ultrasonic liquid level indicators, Coltraco Ultrasonics is a leader in this field. Portalevel® LITE uses advanced signal processing techniques to deliver liquid level accuracy to within ±1mm of the true level. Our instruments are crafted to the highest standards in the UK using premium materials, offering superior value and reliability, backed by our unique position in research and development.
| Dimensions | 120x78x27 mm (L x W x D) |
| Unit Weight | 300g (with batteries) |
| Cylinder Compatibility | Works on most single-skinned cylinders, operational range may vary depending on the cylinder contents. Typical cylinder diameter: 110mm – 700mm |
| Agent Types | Carbon Dioxide (CO2), Halon fire agents (Halon 1211, Halon 1301, Halon 2402), FE-13™, FE-25™, Clean Agents (Novec™ 1230, FM200™) |
| Accuracy | Down to ± 1% of true liquid level |
| Display | 1.54” 128×64 OLED |
| Additional Features |
|
| Power Supply | 4x LR03 (AAA) cells for up to 24 hours of operation. |
| Operating Tempurature |
|

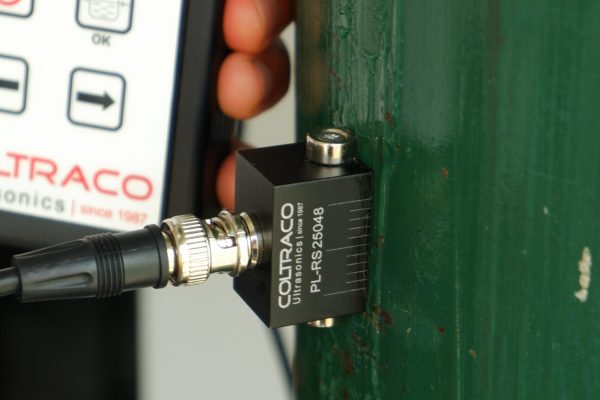

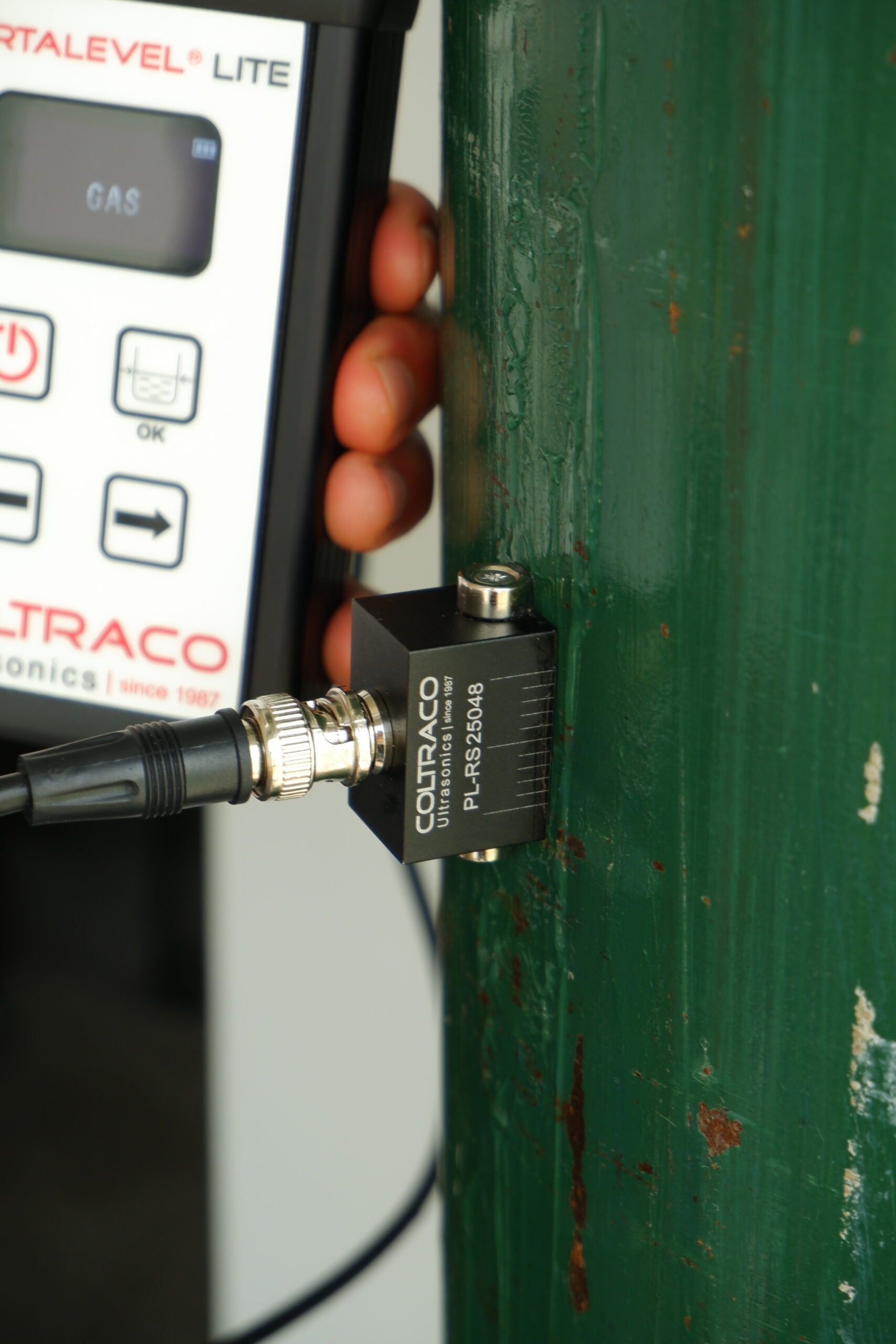

| Sensor | Piezoelectric crystal sensor made from stainless steel. Connects via a 1m BNC coaxial cable. |
| Certifications |
|
| Warranty | Main Unit: 3 years, Sensors: 1 year Lifetime customer support |
