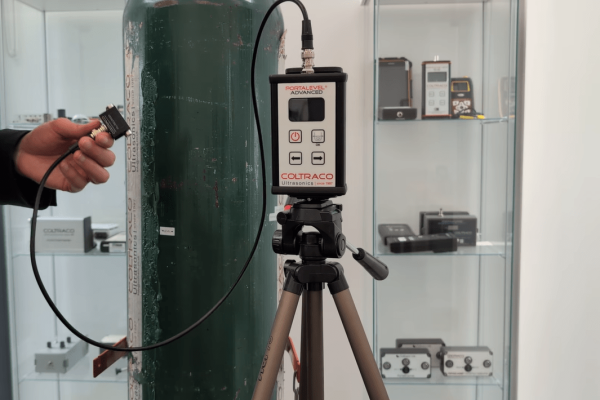

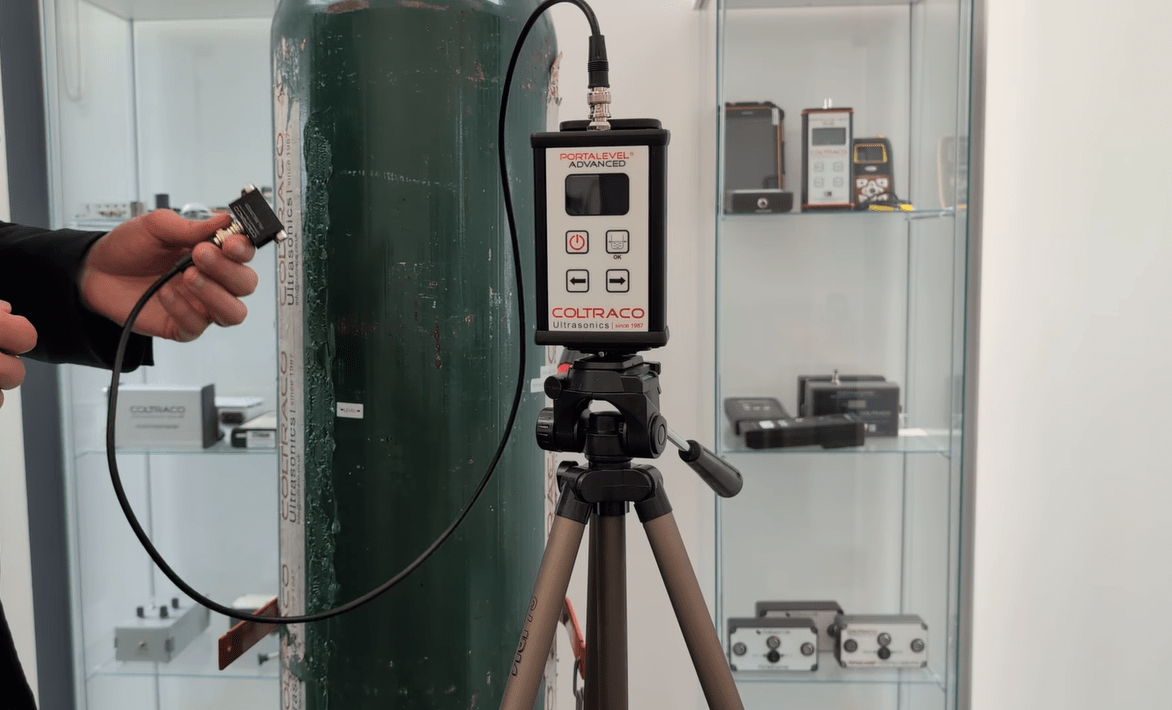

The Portalevel® ADVANCED is a portable, non-invasive ultrasonic liquid level indicator designed for measuring the content of fire suppression agents in seamless or welded single-skin cylinders. The Portalevel® ADVANCED boasts additional advanced features for detailed analysis.
P/N: 2290334-ADV
NSN: 6680-99-275-5292
IMPA MSG P/N: 652776
CAGE Code: KD983 – Bernef America LLC

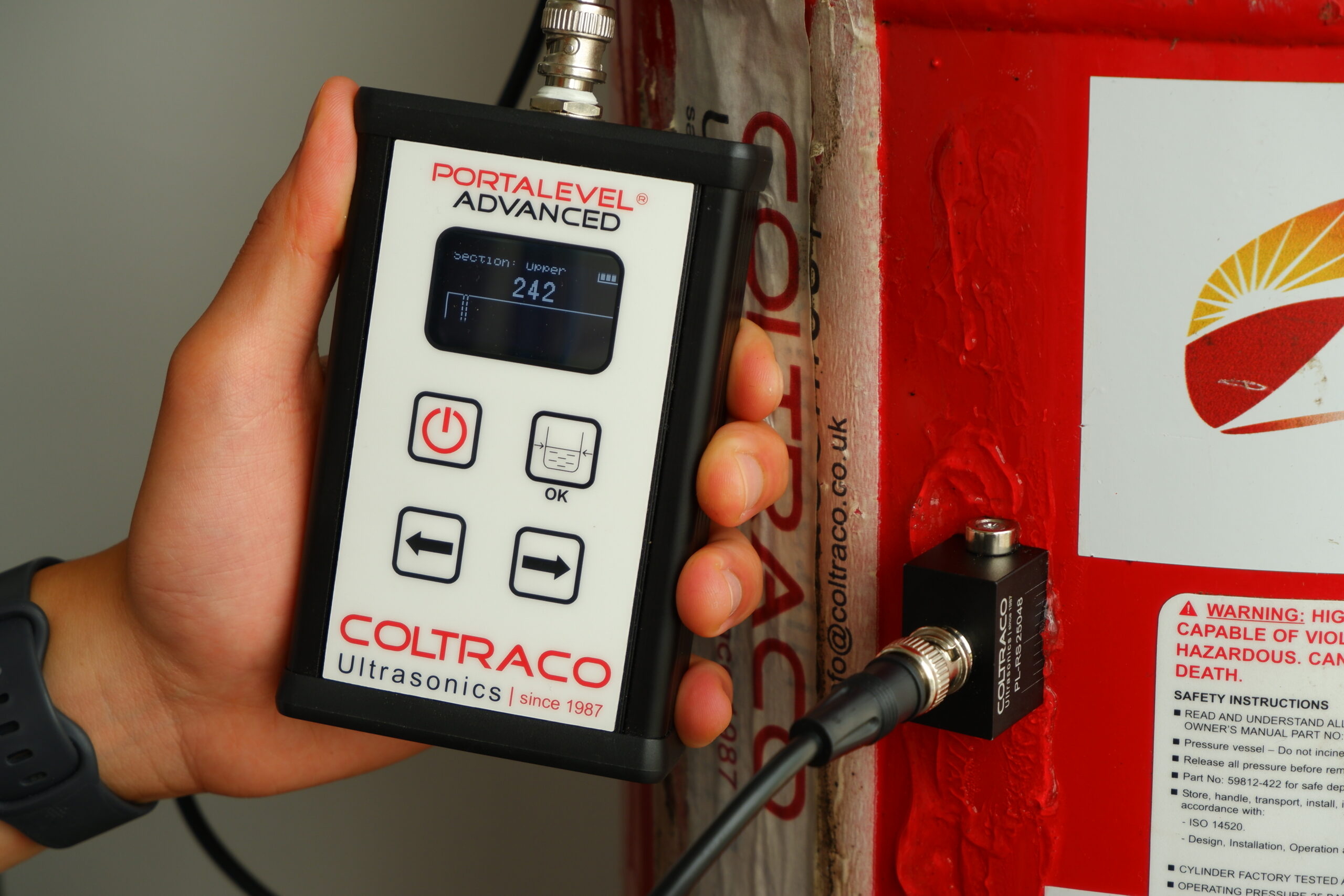

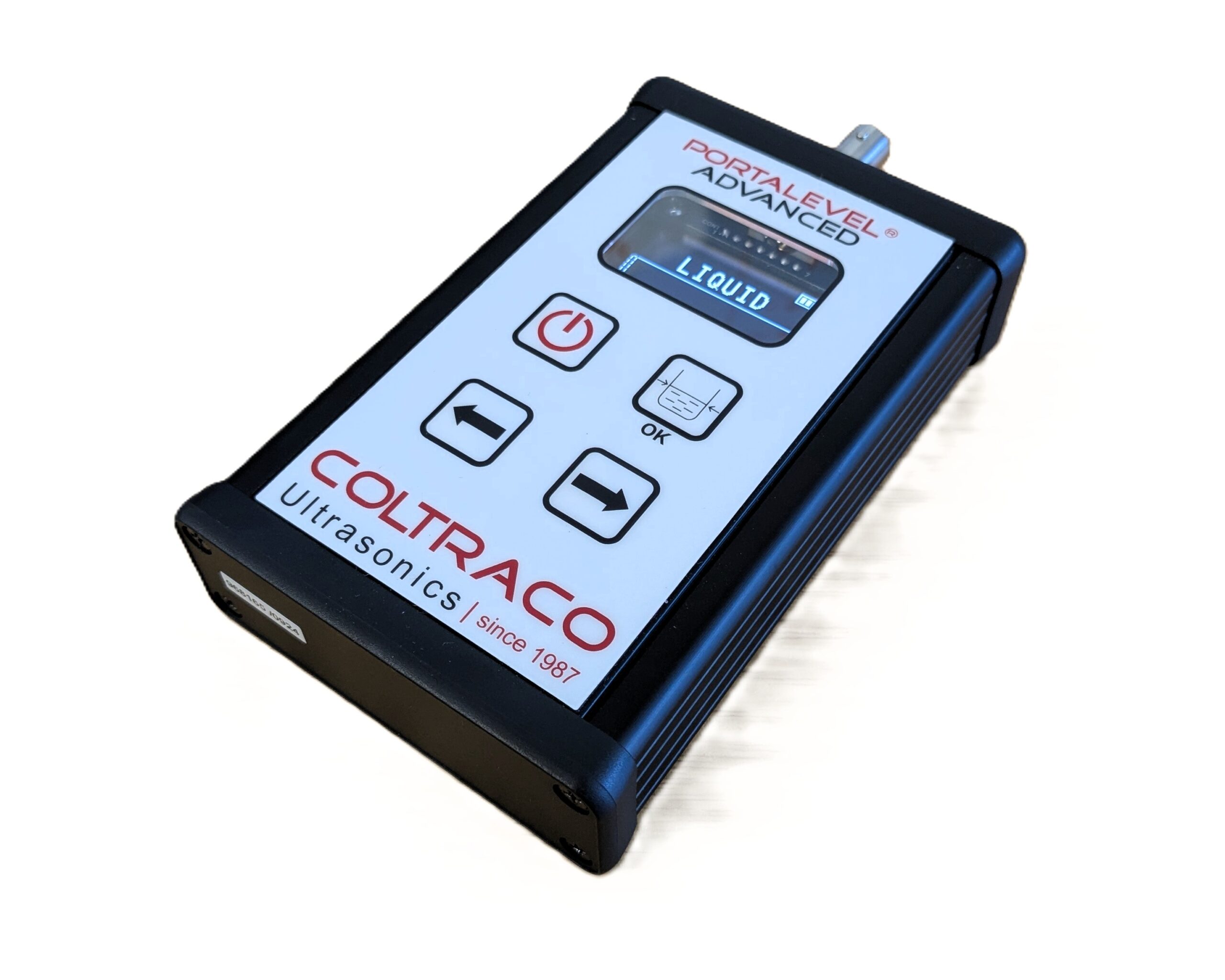

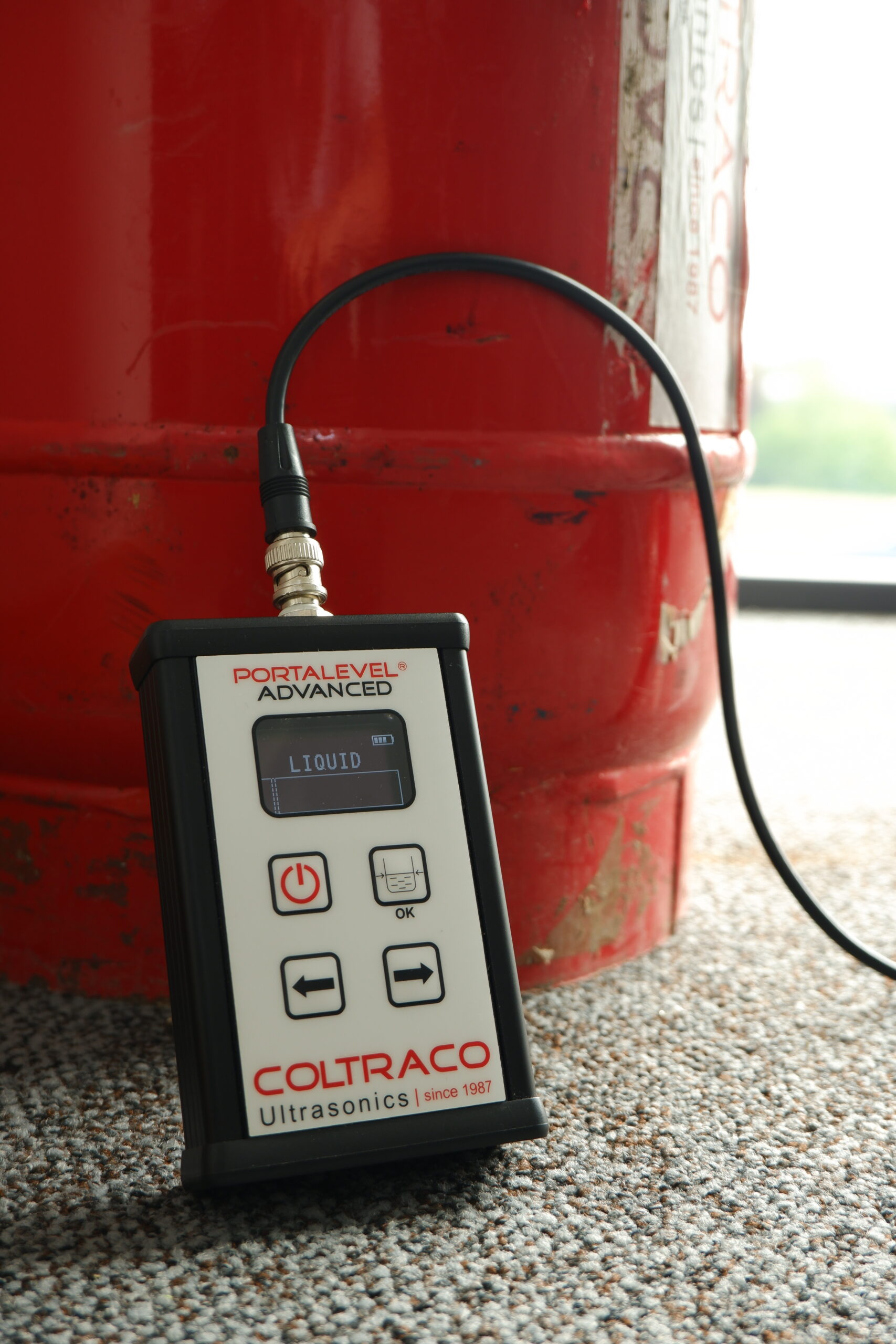

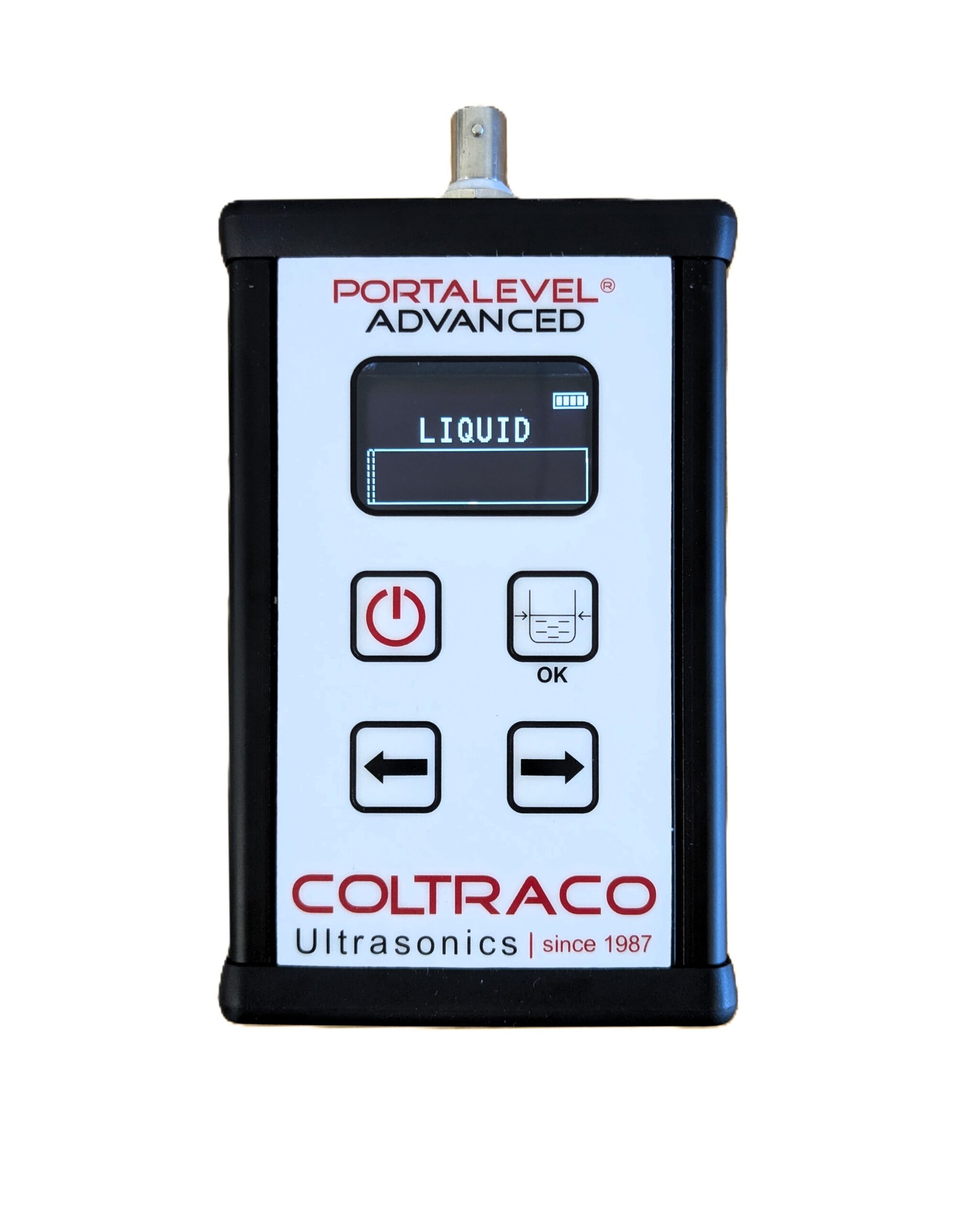

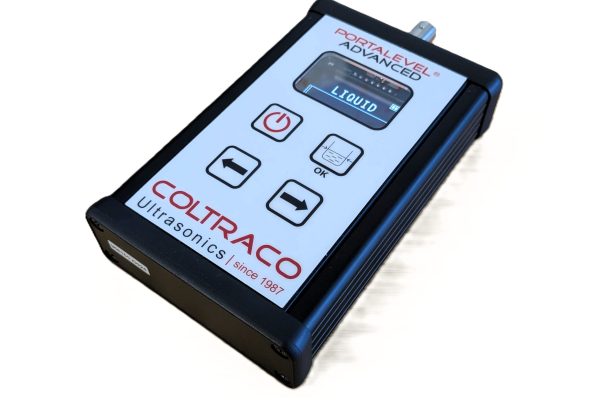

Portale vel® ADVANCED quickly and accurately determines the liquid level in a wide range of liquefied fire suppression agents, including CO2, FM200™, and NOVEC™1230. The device features a high-contrast OLED display that clearly indicates the cylinder contents phase, showing either “GAS” or “LIQUID.”
The integrated signal viewer provides a real-time, oscilloscope-like display of the ultrasound signal, allowing users to observe the signal’s response and visually confirm phase transitions. This added clarity supports more precise identification of the liquid level, making measurements quicker and more reliable, delivering accuracy within ±1mm of the true liquid level in cylinder diameters ranging from 110mm to 700mm.
| Dimensions | 120x78x27 mm (L x W x D) |
| Unit Weight | 300g (with batteries) |
| Cylinder Compatibility | Works on most single-skinned cylinders, operational range may vary depending on the cylinder contents. Typical cylinder diameter: 110mm – 700mm |
| Agent Types | Carbon Dioxide (CO2), Halon fire agents (Halon 1211, Halon 1301, Halon 2402), FE-13™, FE-25™, Clean Agents (Novec™ 1230, FM200™) |
| Accuracy | Down to ± 1% of true liquid level |
| Display | 1.54” 128×64 OLED |
| Additional Features |
|
| Power Supply | 4x LR03 (AAA) cells for up to 24 hours of operation. |
| Operating Tempurature |
|
| Sensor | Piezoelectric crystal sensor made from stainless steel. Connects via a 1m BNC coaxial cable. |
| Certifications |
|
| Warranty | Main Unit: 3 years, Sensors: 1 year Lifetime customer support |
