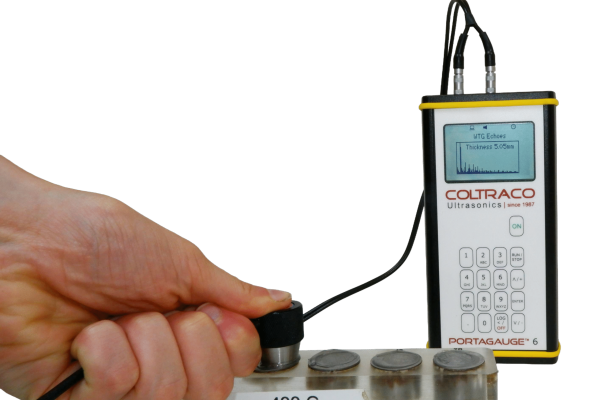

  • Portagauge-6-Hand-scaled
  • Portagauge-6-product-images-610x610px-2

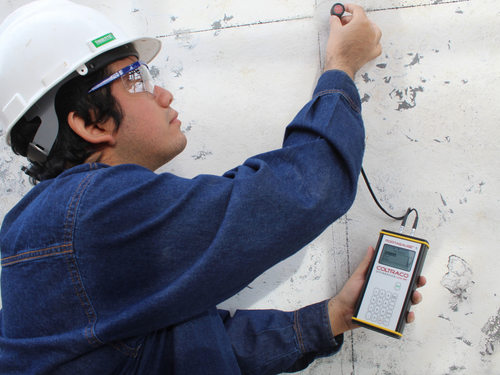

  • Ayni-Portagauge-5

Multiple echo ultrasonic thickness gauge

The Portagauge® 6 is a multiple echo ultrasonic thickness gauge for measuring the thicknesses of various metals and rigid plastics, which ignores any coating up to 20mm in thickness. It has a built-in datalogger to store up to 200,000 thickness measurements and minimum thickness alarm functionality.

P/N: 2099382-6
NSN: 5520-99-382-6449
CAGE Code: KD983 – COLTRACO LIMITED

Multi-Echo Capability & Ignores Paint Coating

Easily measure material thickness through paint layers/coatings without removing them. It is able to ignore paint coatings up to 20mm in thickness, giving you the material’s true thickness readings accurate to +/- 0.1mm.

The Portagauge® 6 ultrasonic thickness gauge measures through protective coatings, providing accurate and reliable thickness measurements. This helps you to determine the level of corrosion or erosion without the risk of causing further corrosion damage.

Technical Specifications

Dimensions
    • Height: 168mm
    • Width: 82mm
    • Depth: 31mm
    • Weight: 360g
Measuring Range in Steel Most metals and plastics, built-in database contains the following: Carbon Steel, Stainless Steel 304, Stainless Steel 316, Cast Iron, Ductile Iron, Copper, PVC, Lead, Nylon, Polyethylene (PE), Aluminium, Asbestos, Fibre Glass, Glass
Accuracy +/- 0.1 mm
Resolution +/- 0.01mm
Measurement Units Metric (mm) and Imperial (inches)
Resolution 0.25 mm/s
Repeatability 0.15% of measured value
Measurement Mode Multiple Echo (ignores paint coating up to 20mm thick)
Datalogging
    • 4 MB internal storage for datalogging, capable of recording up to 200,000 thickness measurements.
    • Logs include date, time, a user-set identifier and thickness measurement and can be downloaded to a PC via the micro-USB port.
Frequency 2.25 MHz, 2.5 MHz, 5.0 MHz
Display Full 128 x 68 pixel graphics with backlight for working in poor visibility conditions
Additional Features
    • Custom material sound velocity input enables users to test custom materials
    • A-scan functionality to observe material condition and verify correct return backwall echo
    • Oscilloscope trace to assist in performing a good measurement
    • Minimum thickness alarm, audible alert when thickness measurements drop below user-set minimum value
Power Supply
    • 9V PP3 battery, up to 12 hours continuous use with auto shutdown after 30 seconds of inactivity
    • 24/7 power option via micro-USB port
Operating Temperature Main Unit: -10°C to +65°C
IP Rating Main Unit: IP 65 enclosure
Sensor Type Dual element with 0.9m LEMO-00 cable
Sensor Options
    • 2.5 MHz – 14mm diameter sensor, most robust and reliable for metal thickness measurements
    • 5.0 MHz – 10mm diameter sensor, for measuring pipes no smaller than 25mm (1”) diameter
    • 5.0 MHz – 6mm diameter sensor, for measuring pipes no smaller than 15mm (1/2”) diameter
Certifications
    • CE
    • Meets marine classification society requirements for marine thickness gauging inspection equipment
    • Coltraco is ISO 9001:2015 and ISO 14001 approved
Warranty
    • Main unit – 3 Year Warranty
    • Sensor – 1 Year Warranty
    • Technical Support – Lifetime of the unit
